Features

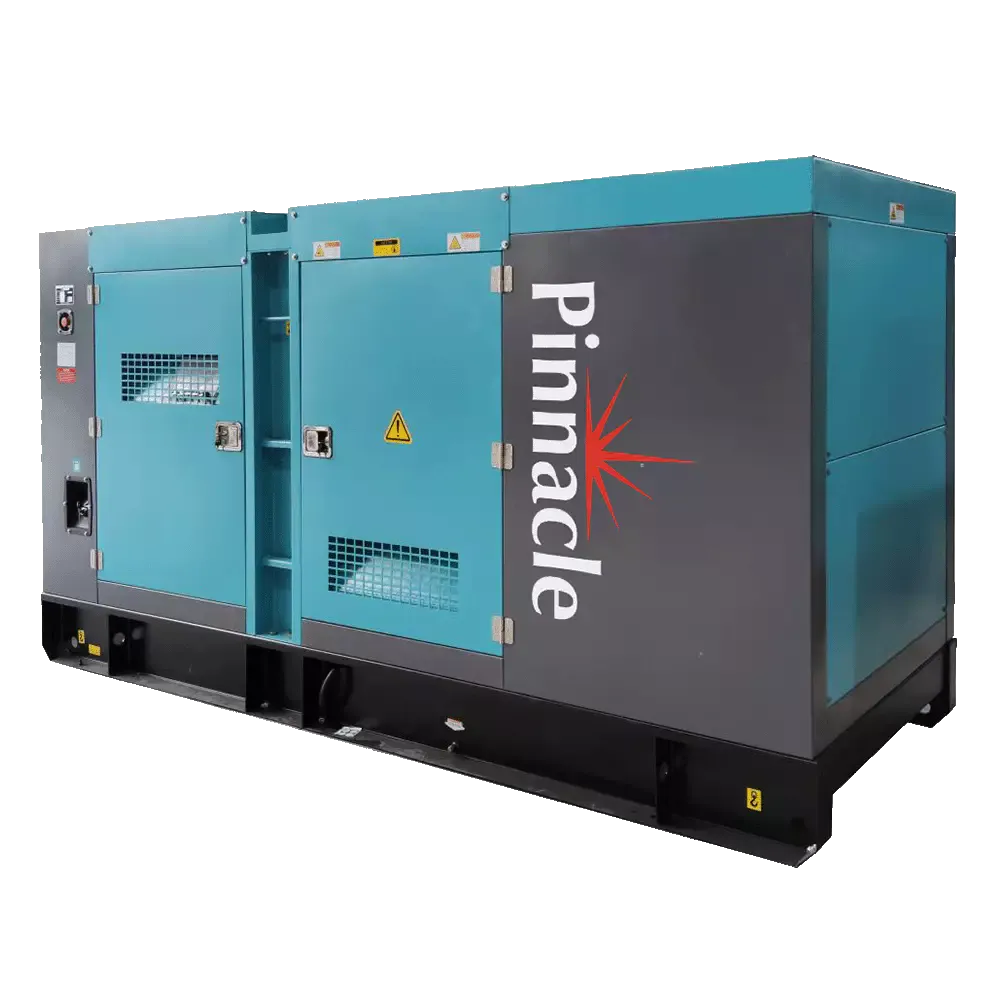

Our silent canopy generator designed for industrial use. This 3-phase generator operates quietly at 75dB, making it ideal for noise-sensitive environments. With a robust Prime Power of 200kVA and Standby Power of 220kVA, it ensures reliable performance. Powered by diesel, it offers a fuel-efficient solution for dependable and quiet power generation.
Specifications
| Prime power | 200kVA |
| Standby power | 220kVA |
| Rated voltage line to line | 400V 230V |
| Rated current | 304A |
| Maximum sound level | 75dB(A) |
Components
| Engine | SDEC |
| Model | 6DTAA8.9-G21 |
| Aspiration | Pressurized and Medium Cooled |
| Fuel system | Longkou in-line P type |
| No. cylinders | 6 in line |
| Displacement | 8.82L |
| Bore*Stroke | 114*144mm |
| Compression ratio | 18:1 |
| Rated speed | 1500rpm |
| Rated net power (With fan) | 185kW |
| Governor type | Electrical |
| Start Motor | 24V |
| Engine oil capacity | 19L |
| Alternator | Technic |
| Model | TP274H |
| Phase | 3 |
| Voltage | 400V 230V |
| Wiring Type | 3 Phase 4 wire, Y type |
| Bearing | 1 |
| Power factor | 0.8 |
| Frequency | 50Hz |
| Prime power | 160kW |
| Exciter Type | Brushless, self-excitation |
| Voltage regulation | ±0.5% |
| Protection Grade | IP 23 |
| Insulation grade | H/H |
| Altitude | ≤1000m |
| Controller | Deepsea |
| Model | DSE6120 |
| Protective functions | Low oil pressure High water temperature High/Low voltage High engine temperature Engine overspeed Voltage regulator Emergency stop Star failure |
| Aspiration System | |
|---|---|
| Max inlet pressure | 6kPa |
| Air flow | 16.4m³/min |
| Fan consumption | 10kW |
| Exhaust system | Commercial |
| Exhaust gas flow | 35.9m³/min |
| Exhaust gas temperature | 600℃ |
| Max back pressure | 6kPa |
| Fuel system | Diesel |
| 100% load (Prime power) | 44.1L/h |
| 75% load (Prime power) | 32.8L/h |
| 50% load (Prime power) | 22.8L/h |
| Fuel tank capacity | 420L |
| Cooling system | Water cooled |
| Coolant capacity | 12L |
| Thermostat operation range | 82-95℃ |
| Max water temperature | 104℃ |
Box content
- 200kVA Generator
- 12V Battery
- Silent canopy housing
- Trailer optional extra. Price on request.
- Please note: Additional delivery charges may apply dependent on area and delivery service. Contact [email protected] for information.
Warranty
- All generators include a 1-year/1000hr warranty
- Pinnacle South Africa warranty terms & conditions apply
- Online industrial Pty Ltd warranty terms & conditions apply
- All spare parts & backup are available on request by Online industrial Pty Ltd
