Features

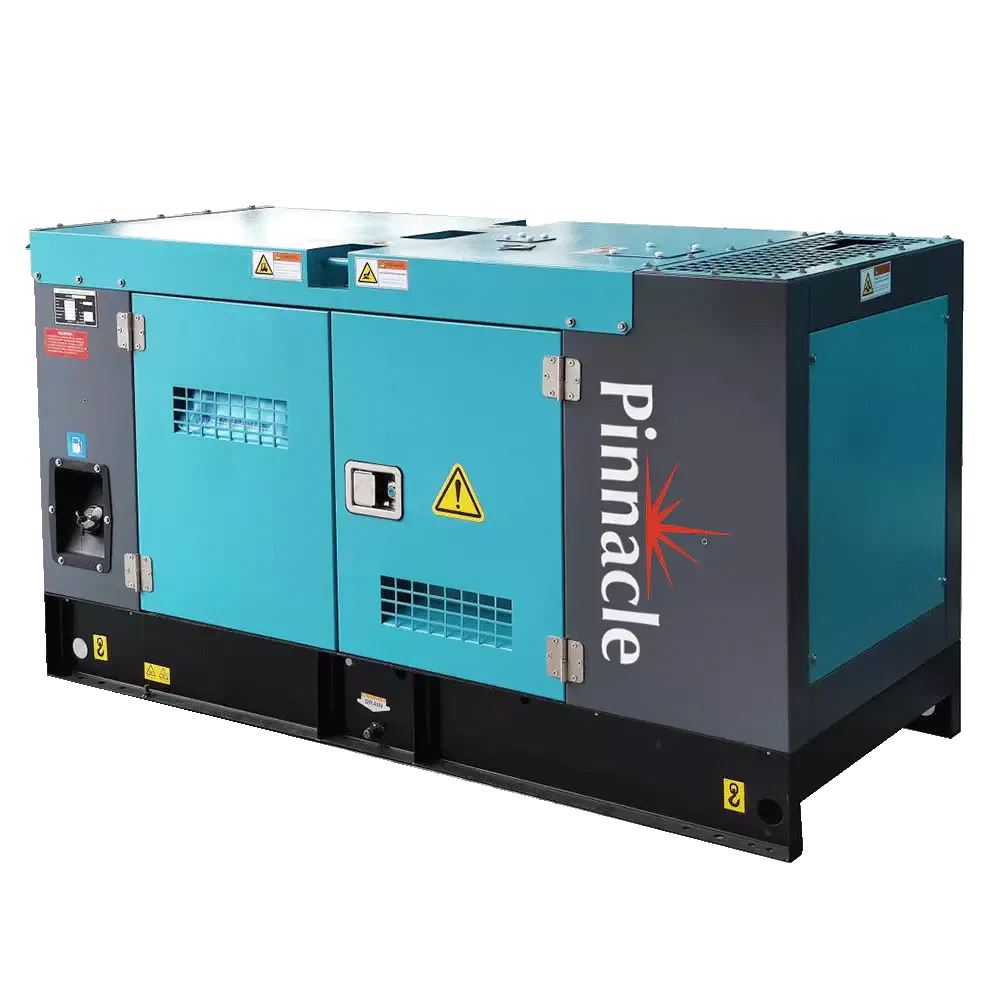

The 80kVA Silent industrial diesel generator SDEC is a powerful, reliable choice for a wide range of industrial applications. With its silent 73dB operation, this generator is ideal for locations with noise restrictions and offers 80 kilovolt-amperes of output power. Its robust construction ensures performance and long lasting operation in the toughest of environments.
Specifications
| Prime power | 80kVA |
| Standby power | 88kVA |
| Rated voltage line to line | 400V 230V |
| Rated current | 133A |
| Maximum sound level | 73dB(A) |
Components
| Engine | SDEC |
| Model | 4ZTAA4.1-G31 |
| Aspiration | Turbocharged |
| Fuel system | Nan Yue |
| No. cylinders | 4 |
| Displacement | 4.1L |
| Bore*Stroke | 105*118mm |
| Compression ratio | 18:01 |
| Rated speed | 1500rpm |
| Rated net power (With fan) | 74kVA |
| Governor type | Electrical |
| Start Motor | 12V |
| Engine oil capacity | 10L |
| Lubrication method | Pressure feed |
| Oil pump | Camshaft driven |
| Alternator | Technic |
| Model | TP224G |
| Phase | 3 |
| Voltage | 400V 230V |
| Wiring Type | 3 Phase 4 wire, Y type |
| Bearing | 1 |
| Power factor | 0.8 |
| Frequency | 50Hz |
| Prime power | 68kW |
| Exciter Type | Brushless, self-excitation |
| Voltage regulation | ±0.5% |
| Protection Grade | IP 23 |
| Insulation grade | H/H |
| Altitude | ≤1000m |
| Controller | Deepsea |
| Model | DSE6120 |
| Protective functions |
Low oil pressure High water temperature High/Low voltage High engine temperature Engine overspeed Voltage regulator Emergency stop Star failure |
| Aspiration System | |
|---|---|
| Max inlet pressure | 4.0kPa |
| Combustion volume | 13.6m³/min |
| Air flow | 7.7m³/min |
| Exhaust system | Commercial |
| Exhaust gas flow | 24.6m³/min |
| Exhaust gas temperature | 550℃ |
| Max. pressure | 10kPa |
| Fuel system | Diesel |
| 100% load (Prime power) | 18.7L/h |
| 75% load (Prime power) | 14.6L/h |
| 50% load (Prime power) | 10.0L/h |
| Fuel tank capacity | 120L |
| Cooling system | Water cooled |
| Water capacity (Engine only) | 4.1L |
| Thermostat operation range | 72-85℃ |
| Max water temperature | 104℃ |
Box content
- 80kVA Generator
- 12V Battery
- Silent canopy housing
- Trailer optional extra. Price on request.
- Please note:
Warranty
- All generators include a 1-year warranty / 1000hr
- Pinnacle South Africa warranty terms & conditions apply
- Online industrial Pty Ltd warranty terms & conditions apply
- All spare parts & backup are available on request by Online industrial Pty Ltd
