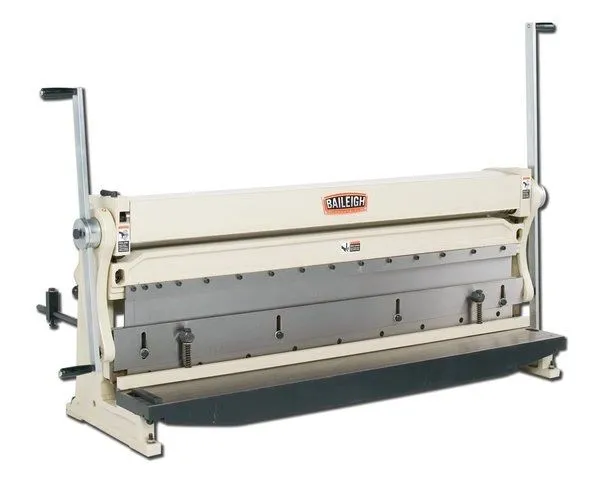

Have a small shop but still want the ability to work with 4’ wide sheets of sheet metal? Take a look at the SBR-5220 from Baileigh Industrial. The SBR-5220 manual press brake and shear also has a slip roll feature making this machine a combination 3-in-1 shear brake roll. This model has a maximum capacity of 20 gauge mild steel and 16 gauge aluminum over its entire 52 inch width.

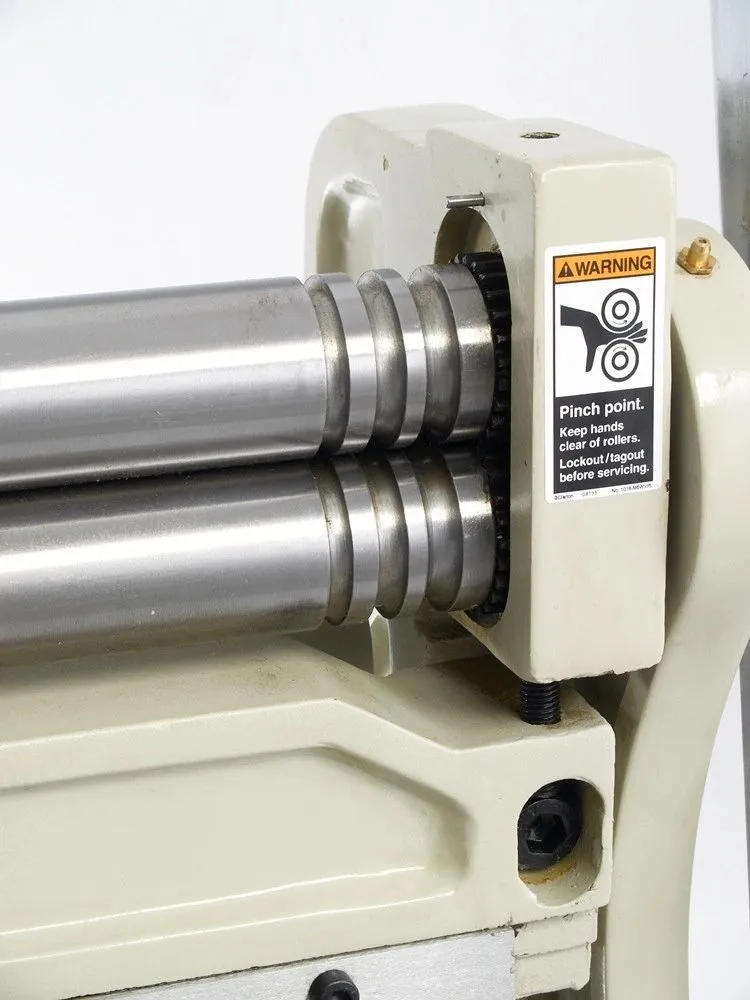

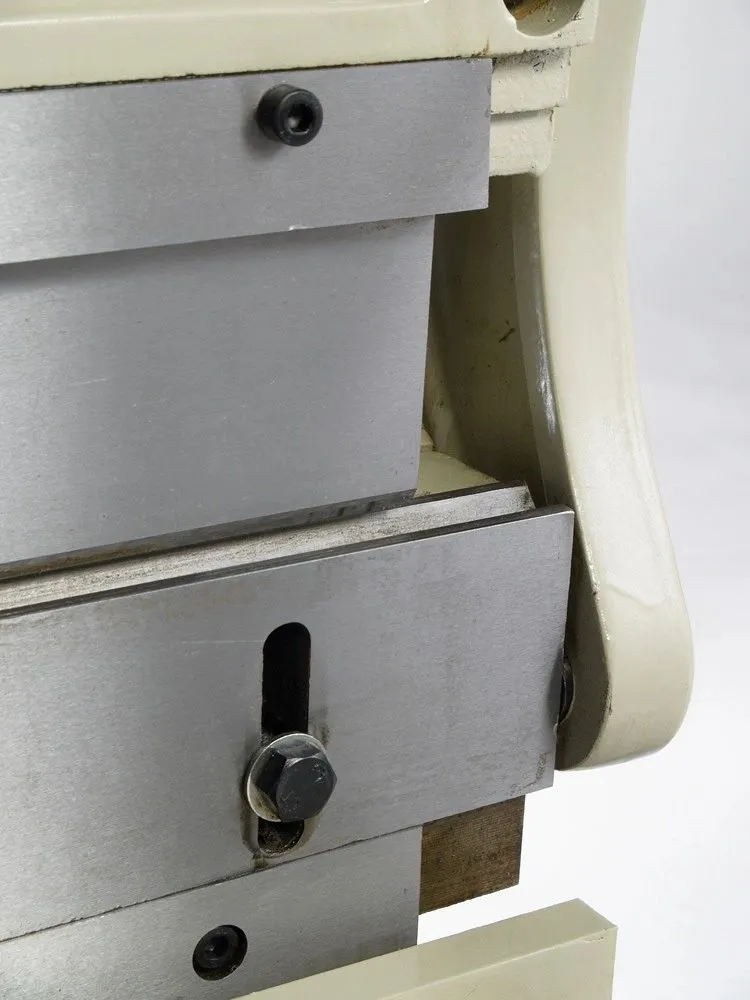

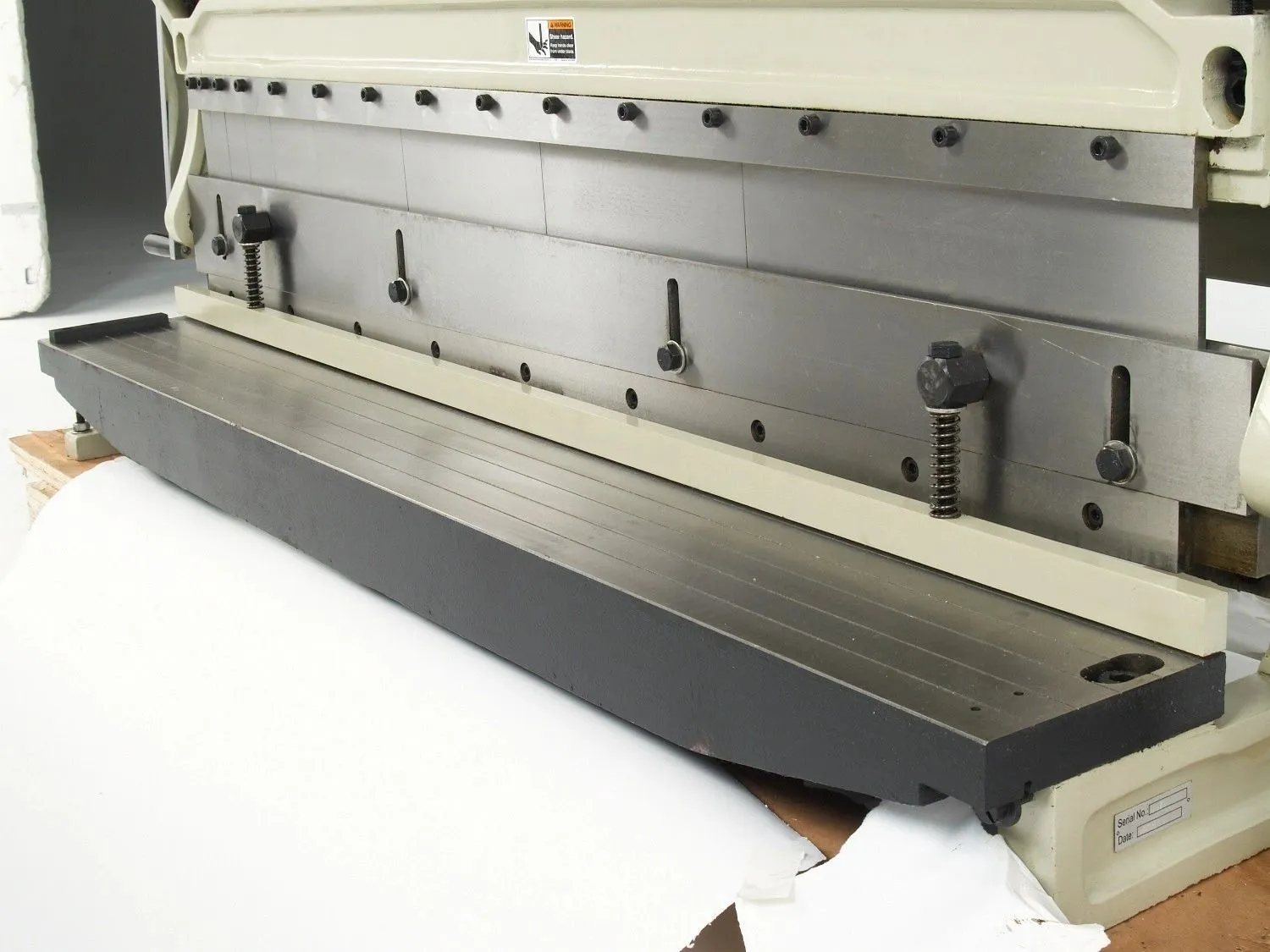

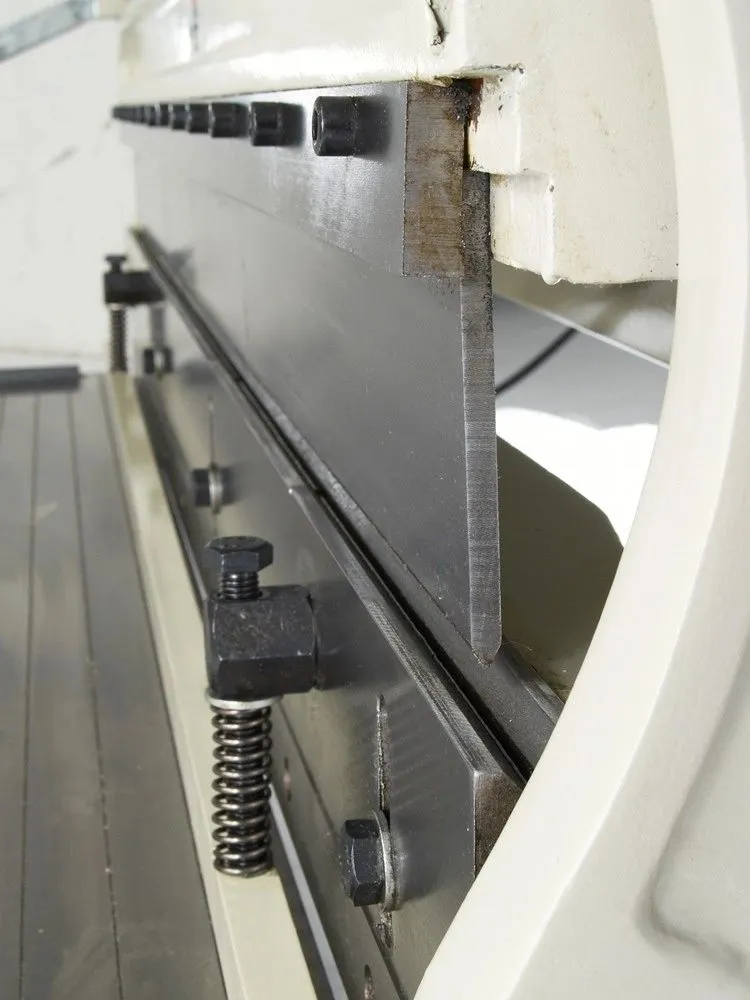

The manual press brake has a hardened single-vee bottom die and the upper beam as removable and movable hardened finger dies. The movable fingers are in varying widths so the operator can move them around to make boxes and pans in varying sizes. The manual metal shear can cut 20 gauge mild steel across the entire width of the machine. The bottom and top shear blades are hardened and reversible for long life. The manual slip roll has hardened bottom and top roll and there are also three wire grooves to roll round rod. Rolls can be formed to a minimum diameter of 1.7 degrees.

Like all Baileigh Industrial machines the SBR-5220 is built for years of use in any condition and the price makes this machine a great value. For more information on the SBR-5220 contact a representative today.
