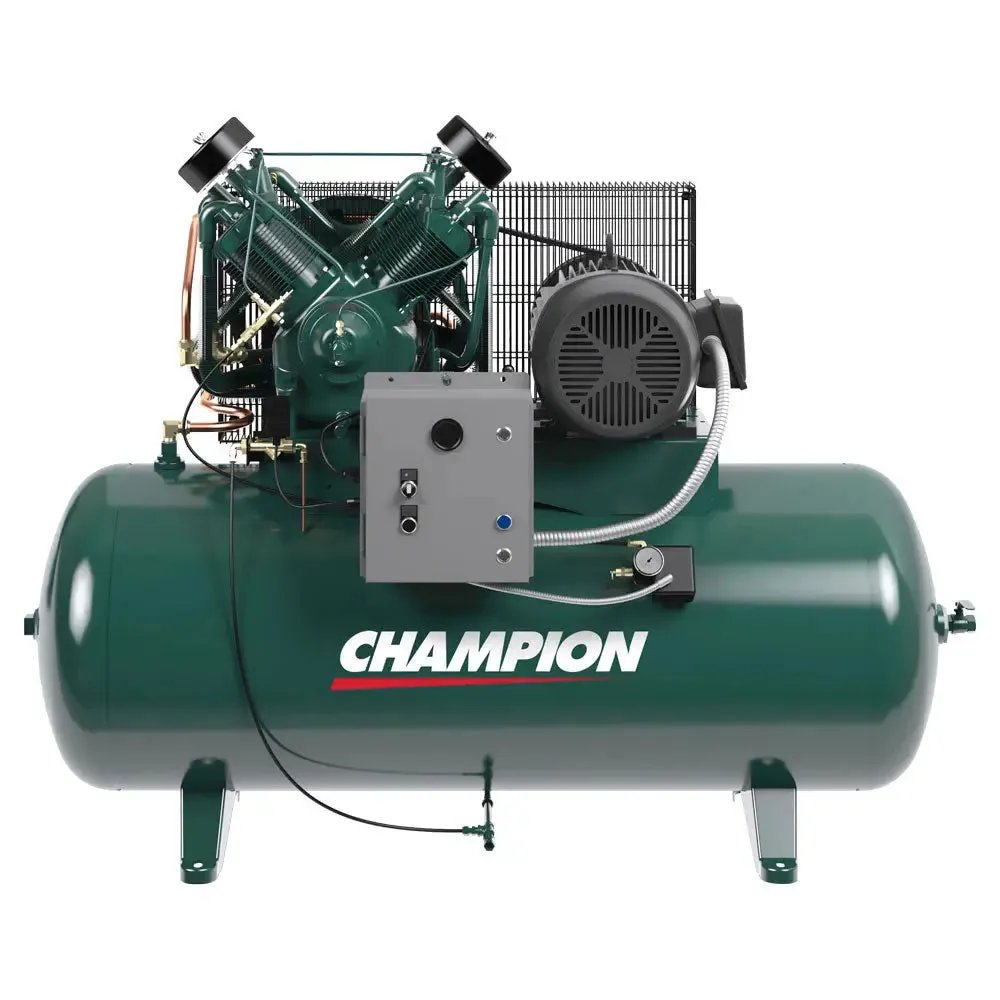

Advantage splash lubricated 10HP, 120 Gal, horizontal tank, with R30 pump model air compressor.
These Advantage units come fully packaged with pre-installed accessories. Our quick-ship program highlights them, so the compressor arrives quickly, ready to install and operate. Each newly assembled unit has a 3-year warranty on the compressor pump.
Features:
- Mounted Nema 1 Control Panel
- Low Oil Stop Control
- Electric - Auto Tank Drain
- Air Cooled Aftercooler (Select Models)
- Dual Control (15 & 25 HP Models Only)
- Vibration Isolators
- R-Series, two-stage pump
- Loadless Starting
- Intake Filter
- Start/stop pressure switch control
- 1800 RPM Motor
- ASME Coded Receiver
- Enclosed Belt Guard
ADVA-S25
Tank: Horiz
Tank Size: Gallons/ Litter: 120 / 454
Phase: 3
Volts: 208
Model Number: HR10-12
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: —
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S25
List Price (Includes options as listed above): 9320
Pump Model: R30
Pump RPM: 718
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 33.8 / 57.4
Est. Weight: Lbs. (kg): / 406
ADVA-S23
Tank: Horiz
Tank Size: Gallons/ Litter: 120 / 454
Phase: 3
Volts: 230
Model Number: HR10-12
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: —
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S23
List Price (Includes options as listed above): 9320
Pump Model: R30
Pump RPM: 718
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 33.8 / 57.4
Est. Weight: Lbs. (kg): / 406
Tank: Horiz
Tank Size: Gallons/ Litter: 120 / 454
Phase: 3
Volts: 208
Model Number: HR10-12
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: —
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S25
List Price (Includes options as listed above): 9320
Pump Model: R30
Pump RPM: 718
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 33.8 / 57.4
Est. Weight: Lbs. (kg): / 406
ADVA-S23
Tank: Horiz
Tank Size: Gallons/ Litter: 120 / 454
Phase: 3
Volts: 230
Model Number: HR10-12
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: —
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S23
List Price (Includes options as listed above): 9320
Pump Model: R30
Pump RPM: 718
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 33.8 / 57.4
Est. Weight: Lbs. (kg): / 406
